HDPE Máquina de tubulação de enrolamento de parede de grande diâmetro de diâmetro

Main Feature:

Whole line is controlled by PLC, operation is easy and stable. Adopt unique forming method, the square tube size meets the requirements. Can work together with socket and spigot injection machine for easy pipe connection. By changing some parts, extrusion line can also produce multi-layer and wind pipes with different wall structure.

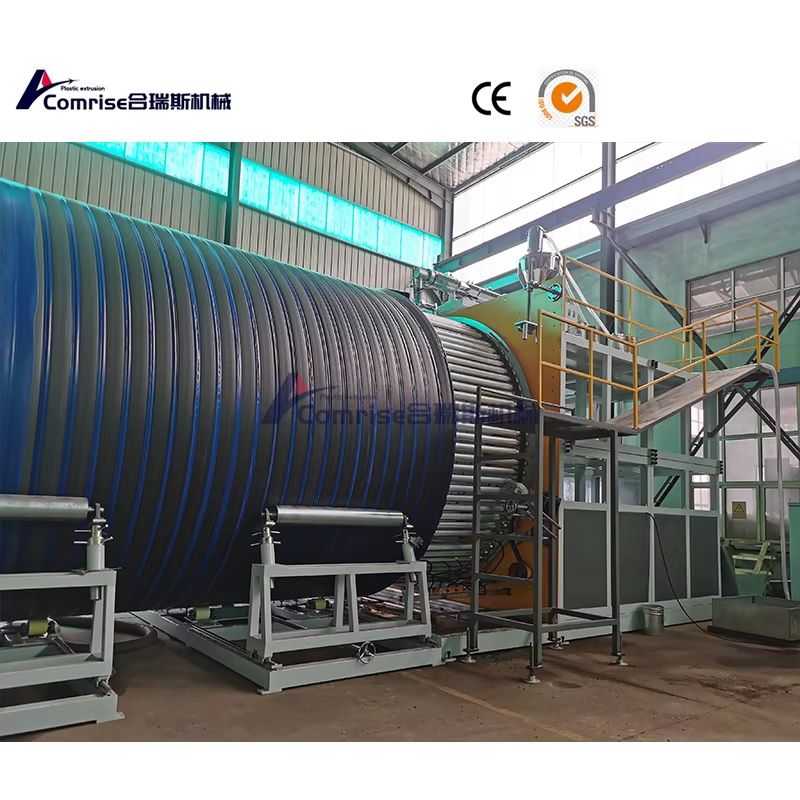

COMRISE absorbs the latest technologies from both domestic and international sources for the production lines of large-diameter HDPE pipes and FR-PP pipes. It can produce drainage pipes with a large diameter of 200-3200mm. HDPE Large-Diameter Hollowness Wall Winding Pipe Machine are increasingly becoming the mainstream product of urban drainage systems. It will gradually replace steel pipes and cement pipes.

The HDPE large-diameter hollowness wall winding pipe machine adopts advanced PLC computer control, and the high-efficiency screw and composite mold include pipe extruder, co extruder, winding forming machine, cutting machine and related auxiliary equipment. The characteristics of HDPE Large-Diameter Hollowness Wall Winding Pipe Machine are large capacity, high efficiency, and stable operation. The completed pipe has the characteristics of high rigidity, high creep resistance, easy connection, and economic use.

This production line can produce the following pipes: double wall corrugated pipe winding pipe, double wall winding pipe, and triple winding pipe.

characteristic

● Adopting two methods

Efficient performance set

The single screw extruder achieves high speed and excellent extrusion quality; Adopting a unique composite die design, HDPE large-diameter hollowness wall winding pipe machine is used for processing large-diameter winding pipes with high production efficiency our factory

Adopting unique winding technology for pipe forming, producing high-quality winding pipes

Adopting advanced PLC control system, it is simple to operate and has high performance we manufacture

1. Host:

Adopting a two-stage pressure reducing screw, combined with special mixing plasticizing components, and high torque and high temperature control accuracy, 90% of the recycled materials can be used for production.

2. Composite mold:

Using composite molds, two extruders jointly provide materials, spiral turning forming, and efficient composite technology to ensure high product quality.

3. Scientific design of pipe walls:

Absorb the essence of European and Korean technologies to ensure high production efficiency and low material use under the condition of the same circular stiffness.

4. Electrical control:

Advanced PLC computer control system, high-precision temperature control module block full-color touch display screen, ensuring easy, stable, and reliable operation.

electrical control system

Japanese National FP2 series ultra large capacity PLC control system, imported frequency converter.

And using a digital DC speed controller, multiple digital dynamic images are collected through human-machine interface dialogue to switch between linear and nonlinear speeds, ensuring stable operation and high control accuracy. By connecting to the modern terminal RS232 of this system, remote data input, program modification, monitoring, fault diagnosis, and elimination can be performed

1. Switching between online speed and non-linear speed

2. Automatic temperature control, pipe extrusion, melt adhesive extrusion, winding molding, synchronous cutting, automatic follow-up control;

3. Pipe extruder, temperature control, feeding, speed regulation supervision;

4. Observation of water temperature during vacuum glue application;

5. Temperature curve display warning;

Melt glue extruder, temperature control, speed adjustment, temperature curve display warning.

We produce efficient single screw extruders that are perfectly matched with Fuji gearboxes, ensuring high production capacity and less energy consumption. The use of PLC will greatly facilitate and improve the perfect combination of its semi automation. With our unique plastic steel composite technology, strip and pipe production can be carried out continuously and in one step. Steel can be perfectly mixed into plastic to prevent chemical corrosion from the outside. Compatible winding holders only require 2 wires to cover the production range of DN200-3000 and remain stable in large-diameter production.

Equipment features:

1. Fast production speed

2. Wide production scope

3. Low defect rate

4. Continuous production

5. Requires less space
